DS_ZM_EN
| EAN kodas | 8595568940681 |
| Muitines kodas | 83024190 |
| Svoris | 0,7495 kg/vnt |
| Paviršiaus danga | Magnelis® |
| Maksimali apkrova | 130 kg |
| Dydis A | 520 mm |
| Dydis B | 94 mm |
| Kabelio lovelio pločiui | 500 mm |
| Kanalo aukščiui | 35 - 110 mm |

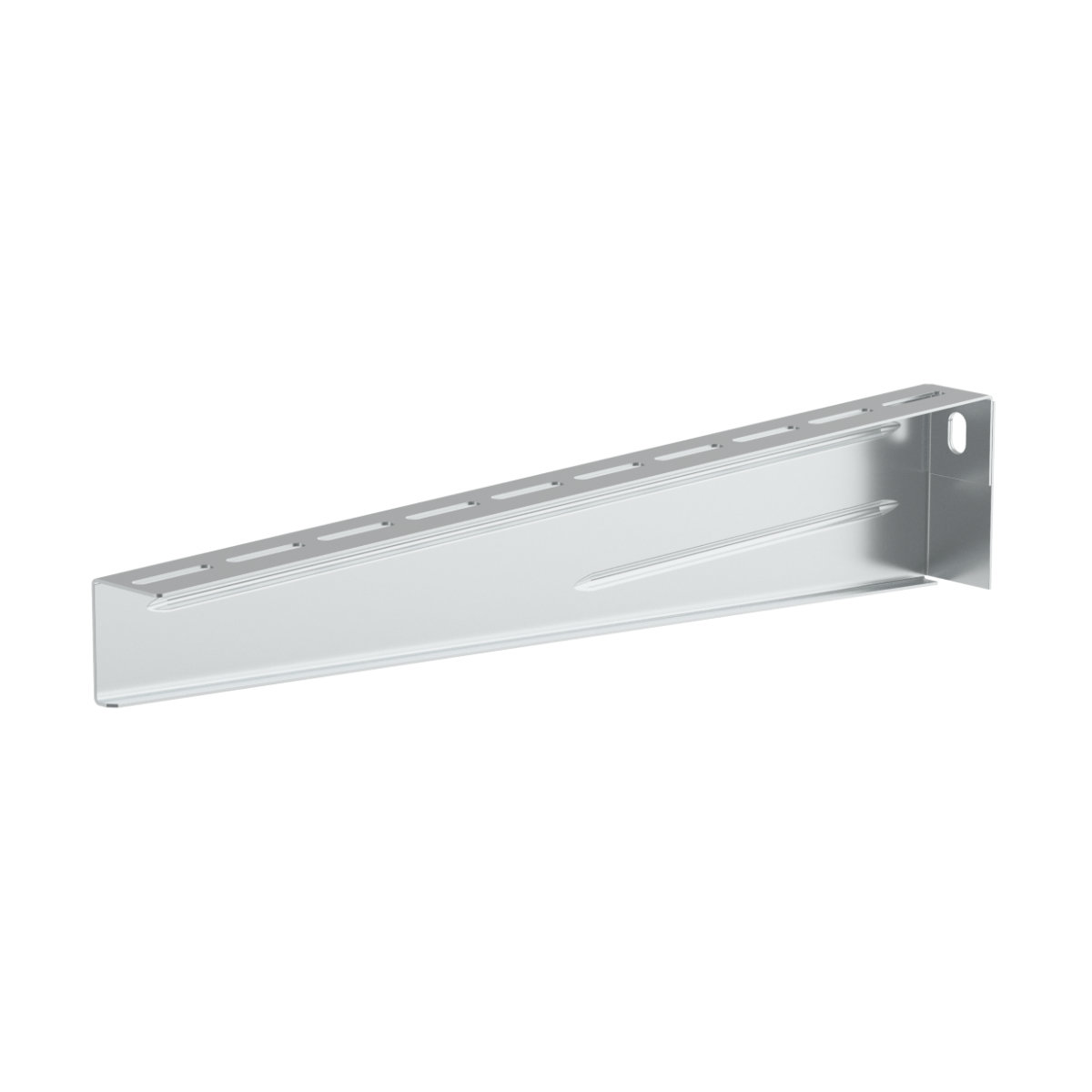

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
