EAN kodas8595568942272
Muitines kodas85369010
Svoris1,6501 kg/vnt
Liepsnos kilpos bandymas650 °C
Mechaninė apsaugasIK07
Aukštis190 mm
Plotis203 mm
Gylis75 mm
Funkcionalumas ugnyjeP90-R, E90, PS90
Apsaugos klasėIP40
Atsparumo gaisrui standartaiČSN 73 0895, DIN 4102-12, STN 92 0205

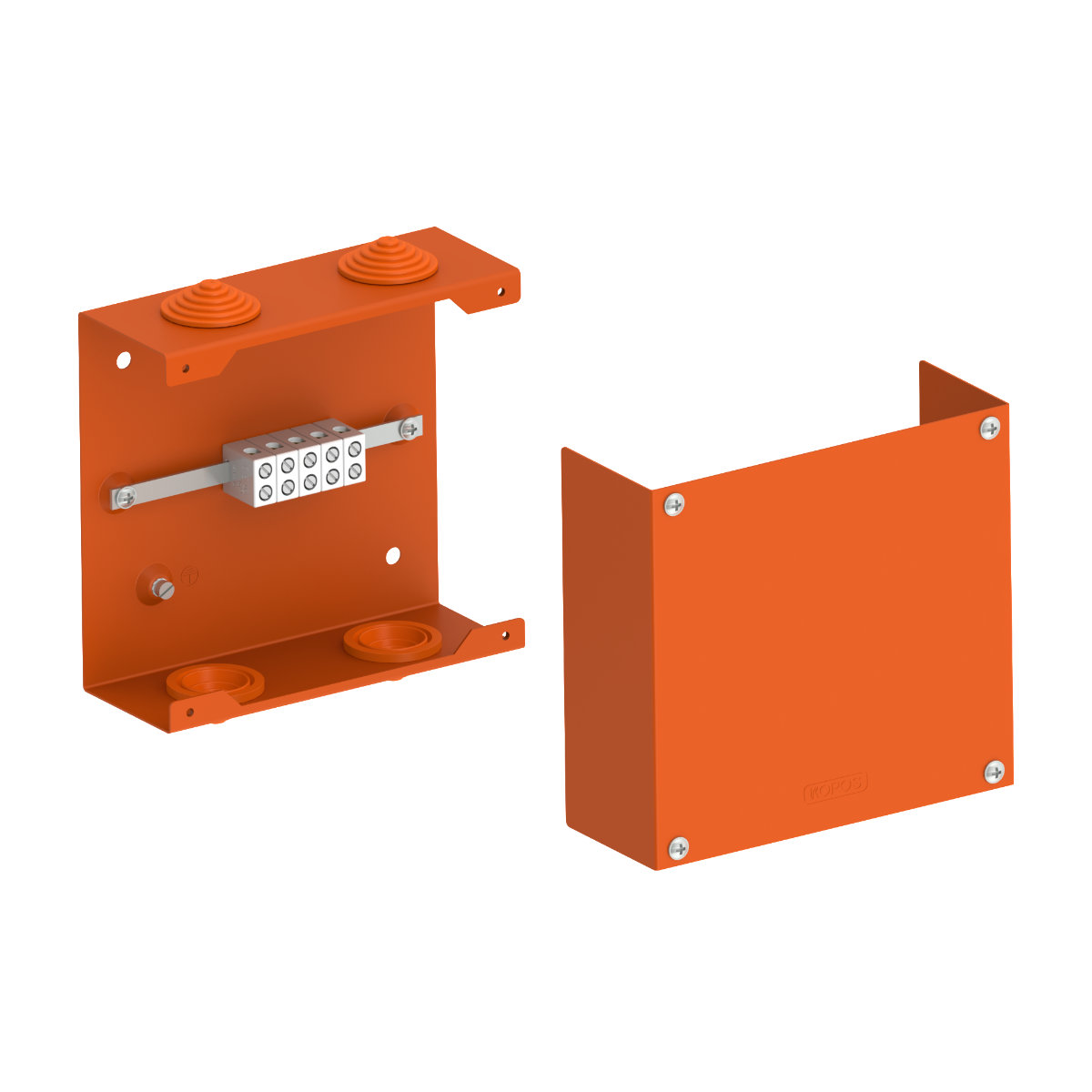

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with power cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).

Šiuo metu prekių neturime
