Wood screw

Priedai ir sertifikatai

paveikslėlis

Sertifikatas
KVD_PO_EN

Gaisro atsparumo sertifikavimas
Atitikties deklaracija
Certificate DIN
Certification report DIN
Conformity declaration DIN

EAN kodas	8595568942531
Muitines kodas	73181290
Svoris	0,0071 kg/vnt
Paviršiaus danga	Electrolytic galvanizing
Ilgis	70 mm
Varžto diametras	5 mm
Funkcionalumas ugnyje	P90-R, E90, PS90
Atsparumo gaisrui standartai	ČSN 73 0895, DIN 4102-12, STN 92 0205

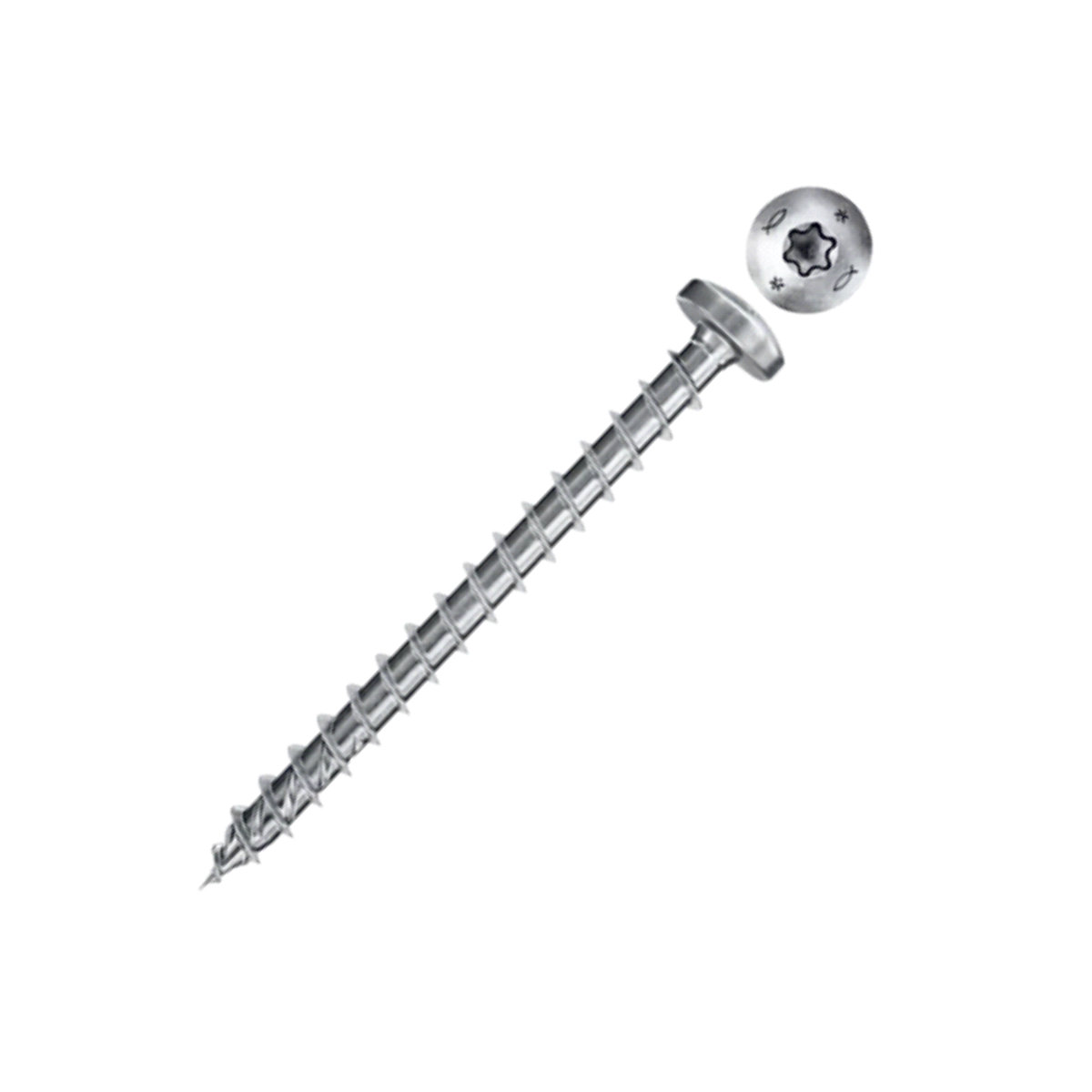

KHP dowel screw with fire resistence up to 90 minutes. Ideal connection for anchoring in aerated concrete (KVD screw + KHP dowel + 67XX_PO clamp). Furthermore, the screws can be used in chipboard, wood and other materials. The screw with full head protruding above the surface is ﬁtted with a star groove TX20.
