KKD115_EN
| EAN kodas | 8595568945006 |
| Muitines kodas | 39259080 |
| Svoris | 0,1516 kg/vnt |
| Spalva | šviesiai pilka RAL 7035 |
| Medžiaga | PP, TPE |
| Behalogenė medžiaga | taip |
| Nominali įtampa | <= 1000 V |
| Nominali srovė | <= 16 A |
| Atsparumas temperatūrai | -25 - +60 °C |
| Liepsnos kilpos bandymas | 850 °C |
| Mechaninė apsaugas | IK07 |
| Aukštis | 115 mm |
| Plotis | 115 mm |
| Gylis | 70 mm |
| Pagrindo medžiagos reakcijos į gaisrą klasė | A1 - F |
| Apsaugos klasė | IP66 |
| Pakuotės aprašymas sealing plugs, external handle of the box and string to hold the lid are inserted into the box, the box is covered with a lid, wrapped in foil | |

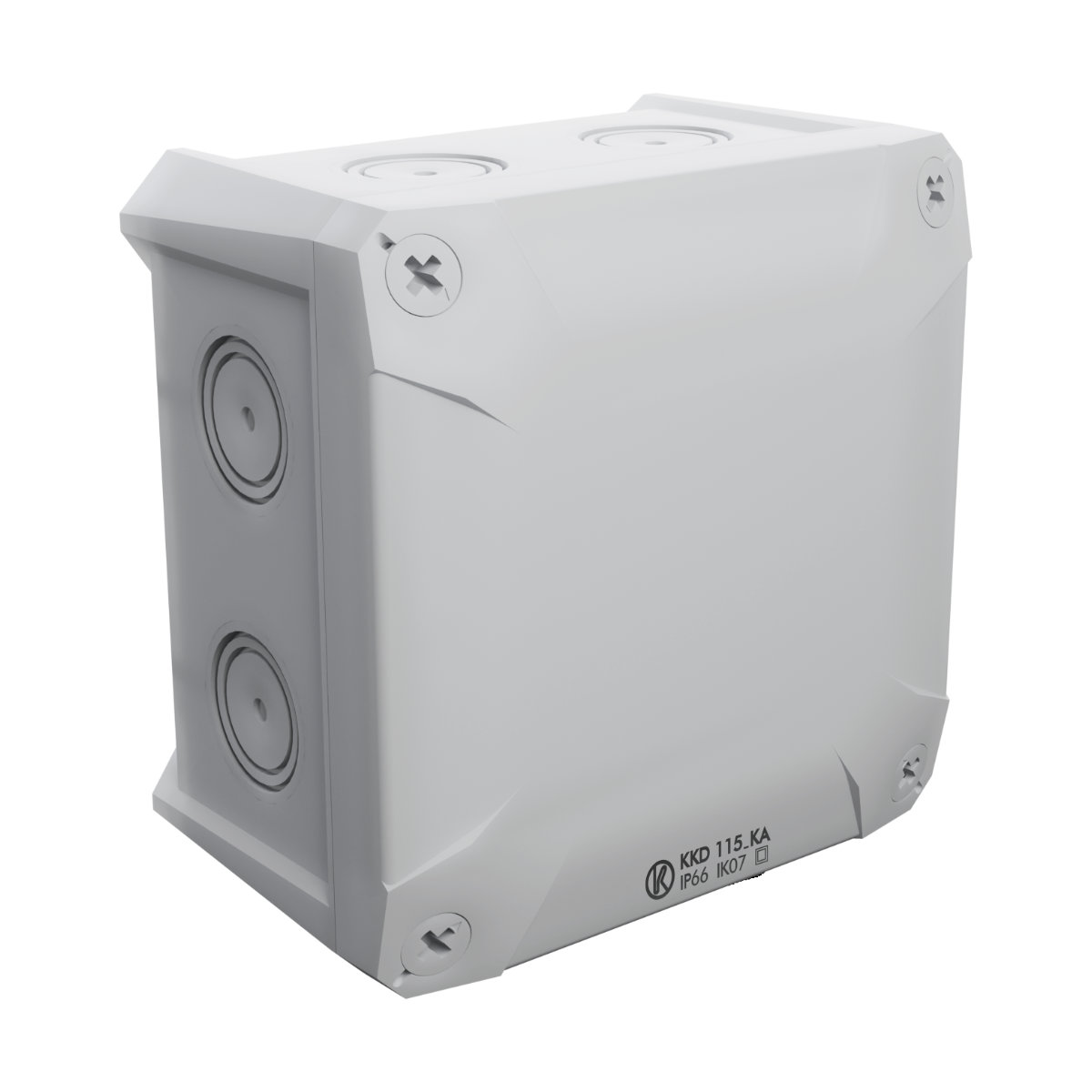

Box designed for distribution systems with voltages up to 1000 V. Made of UV-resistant material. Integrated seal in the openings for mounting to the base material. Perfect sealing of cables and pipes. 7x passage in the wall max. Ø25 mm, 1x passage in the bottom max. Ø20 mm. Designed for direct installation on the surface without the need for an insulating pad. A lid fixed with bayones. Possibility of placing a seal on a closed box.
