EAN kodas8595568932334
Muitines kodas85363030
Svoris0.05 kg/pcs
MedžiagaPVC
Behalogenė medžiagayes
Savaime gęstanti30 s
Nominali įtampa<= 400 V
Nominali srovė<= 16 A
Atsparumas temperatūrai-5 - 60 °C
Liepsnos kilpos bandymas850 °C
Diametras73 mm
Gylis70 mm
Frezuotos (išgręžtos) skylės diametras80 mm
Reakcijos į ugnį klasėA1 - F
Tarpas jungiant dvi dėžutes71
Galimas dvigubo lizdo montavimasyes
StandartaiČSN EN 60 670-1
Pakuotės aprašymas
boxes fitted with instrument screws and loosely packed into the carton

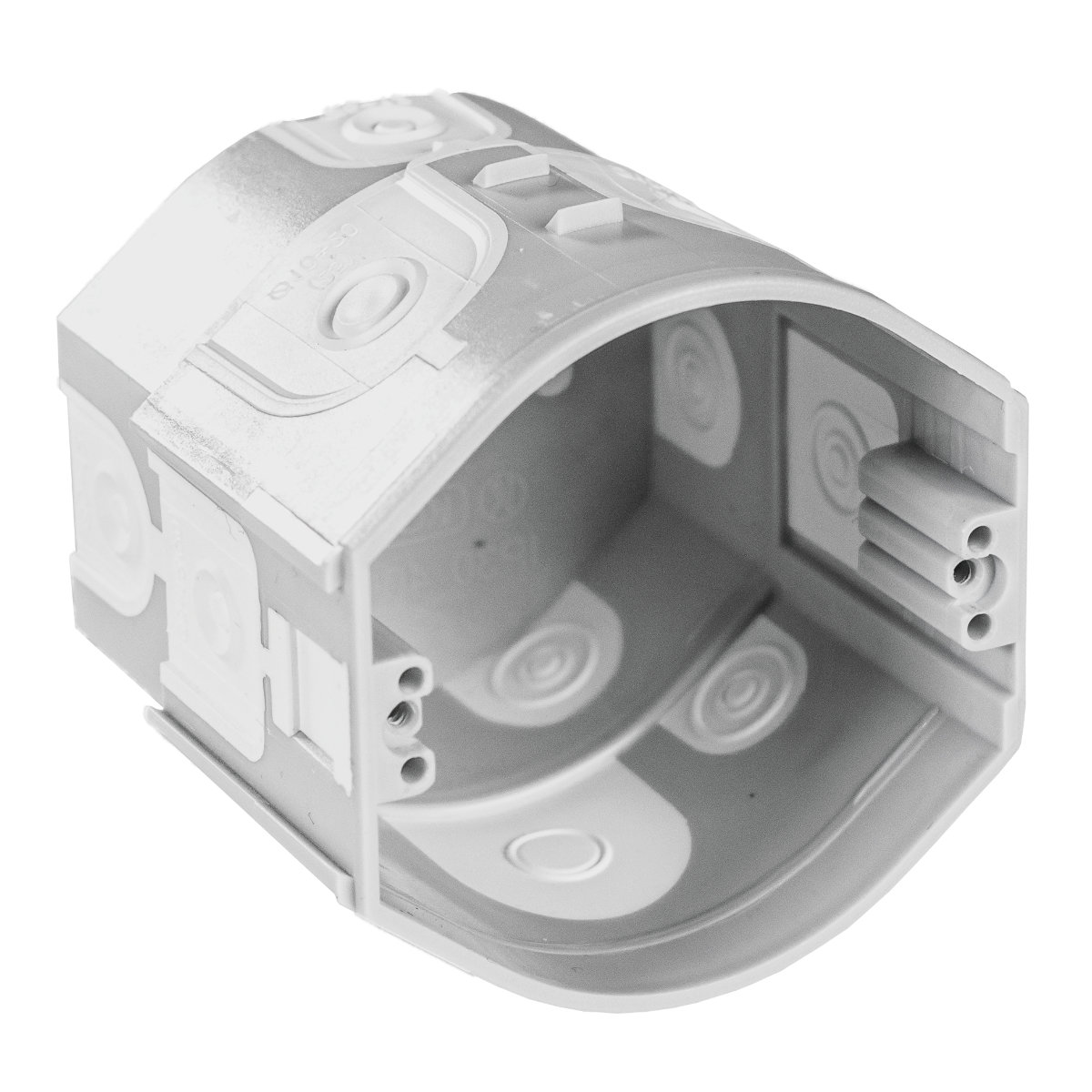

Easy installation of devices with great depth. Connection in a continuous row with a spacing of 71 mm possible. The boxes KPR 68/D can be connected to KP 68 / D box or to each other. Inlet openings made of flexible material. The installation of the cable or pipe is performed by tearing out the prepressed inlet on the flexible membranes and inserting the cable or pipe into the created hole. Ensured airtightness of the passage even when the cable or pipe is inserted. Suitable for low-energy or passive houses. Protected by a European industrial design and Utility model trademark.
